Biological Activated Carbon (BAC) Treatment System
1. Introduction to Biological Activated Carbon (BAC) Treatment
Biological Activated Carbon (BAC) treatment is an advanced water filtration process used widely in drinking water treatment and potable water reuse applications. This system enhances water quality by removing organic contaminants through two primary mechanisms: physical adsorption and biological degradation. BAC is particularly valued in water reuse systems, where it effectively reduces both organic contaminants and pathogens, meeting strict regulatory standards for potable water safety.
In BAC systems, granular activated carbon (GAC) acts as a filter medium, providing a large surface area for adsorption and biofilm formation. As the GAC becomes exhausted and its adsorption capacity diminishes, it transitions to BAC by supporting biofilm growth. The biofilm's biological activity provides continuous removal of contaminants through biodegradation, ensuring long-term system effectiveness.
Importance of BAC in Regulatory Compliance
BAC systems play a critical role in meeting regulatory standards, especially in potable reuse applications. The removal of N-nitrosodimethylamine (NDMA) and other disinfection byproducts (DBPs), such as trihalomethanes (THMs) and haloacetic acids (HAAs), is essential for compliance with regulations like the California Surface Water Treatment Rule. NDMA is a known carcinogen, and strict limits are set for its presence in treated water. BAC filters help remove NDMA from water, ensuring that drinking water remains safe for human consumption.
Moreover, BAC systems contribute to the removal of pathogens in potable water, achieving regulatory goals for log removal of microorganisms. This makes BAC a key component in water treatment systems, particularly those that combine multiple barriers (such as ozonation and UV disinfection) for pathogen removal.
BAC in Advanced Water Treatment
In advanced water treatment (AWT) processes, BAC is frequently used as a pre-treatment step for reverse osmosis (RO) systems. By removing organic contaminants and suspended solids, BAC reduces membrane fouling in RO systems, which extends the operational life of the membranes and enhances overall treatment efficiency.
Biofilm Development and Its Role in Treatment
A well-established biofilm is critical for the long-term success of BAC systems. As microorganisms colonize the surface of the GAC, they break down complex organic molecules into simpler forms, reducing the total organic carbon (TOC) content of the water. This biodegradation process allows the BAC filter to continue removing contaminants even after the GAC's adsorption capacity is exhausted, effectively extending the lifespan of the media and reducing the need for frequent media replacement.
Real-World Application: North City Pure Water Demonstration Facility
A notable example of BAC in action is the North City Pure Water Demonstration Facility in San Diego, California. Here, BAC filters are used to remove organic contaminants from treated wastewater as part of a potable reuse process. The system operates with an empty bed contact time (EBCT) of 15 minutes, achieving a high level of TOC removal—typically around 38%. This facility demonstrates the effectiveness of BAC systems in advanced water treatment settings, contributing to the production of safe, high-quality drinking water.
2. Theory and Principles of BAC Systems
Biological Activated Carbon (BAC) systems combine two distinct water treatment processes: physical adsorption and biological degradation. These systems use granular activated carbon (GAC) as both a filtration medium and a substrate for microbial growth. Understanding the theory behind BAC operation is essential for operators, as it helps them manage the system's efficiency, troubleshoot potential issues, and ensure long-term reliability.
2.1 Adsorption vs. Biodegradation: Mechanisms at Work

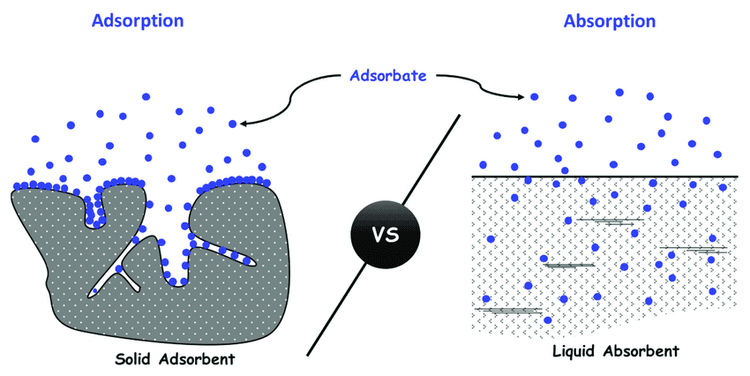

Adsorption is the primary removal mechanism at the beginning of a BAC filter's operational life. In this process, contaminants adhere to the surface of the GAC due to physical forces, such as van der Waals forces and electrostatic interactions. Adsorption is especially effective at removing organic molecules like volatile organic compounds (VOCs), pharmaceuticals, and pesticides, which are hydrophobic and non-biodegradable.
As the GAC becomes saturated and its adsorption sites are filled, biodegradation takes over as the dominant removal mechanism. During biodegradation, microorganisms that colonize the surface of the GAC, forming a biofilm, metabolize organic contaminants. These microorganisms convert complex organic compounds into simpler forms, such as carbon dioxide and water, through oxidation-reduction reactions.

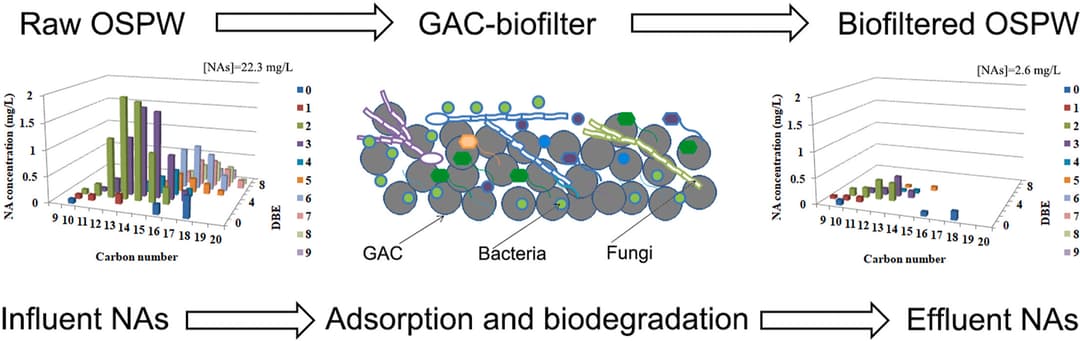

Specific contaminants are processed differently based on their molecular structure:
- • Large organic molecules (e.g., humic substances) are first adsorbed onto the GAC and then broken down by microorganisms in the biofilm.
- • Small, easily degradable molecules (e.g., alcohols, fatty acids) bypass adsorption and are directly biodegraded by the microbial community.
The combination of these two mechanisms allows BAC filters to provide extended operational life compared to standard GAC systems.
2.2 Biofilm Development and Acclimation Process

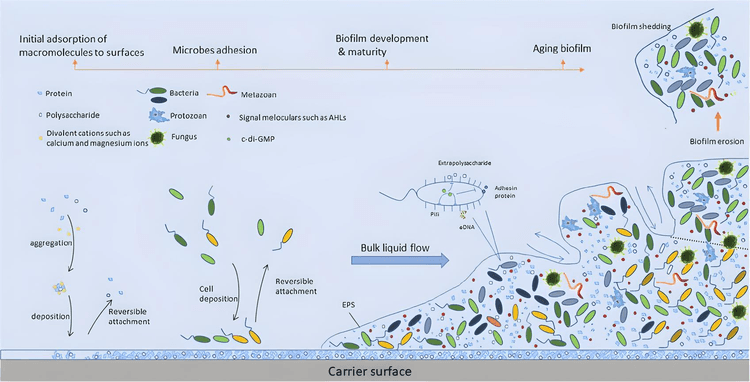

The development of a robust biofilm on the GAC media is critical for the long-term success of BAC systems. Biofilm acclimation typically occurs in three stages:
- 1. Initial Microbial Adhesion: Microorganisms in the water attach to the GAC surface through weak, reversible bonds.
- 2. Irreversible Attachment and EPS Production: Once attached, microorganisms produce extracellular polymeric substances (EPS), which help them form a more permanent attachment to the GAC.
- 3. Biofilm Maturation: Over time, the microbial community grows and matures, forming a thick, stable biofilm capable of biodegrading a wide range of organic contaminants.
The microorganisms in the biofilm include heterotrophic bacteria, fungi, and protozoa, each contributing to the breakdown of different types of organic matter:
- • Bacteria primarily degrade dissolved organic carbon (DOC), such as carbohydrates and proteins.
- • Fungi contribute to the breakdown of more complex organic molecules, such as lignin.
Environmental Factors Affecting Biofilm Formation
Several environmental factors influence the development and stability of the biofilm:
Temperature
Higher temperatures typically enhance microbial activity, resulting in faster biodegradation. However, extreme temperatures can destabilize the biofilm and reduce treatment efficiency.
pH
The biofilm microorganisms function optimally within a specific pH range (typically 6.5–8.5). Significant deviations can inhibit microbial growth and degrade system performance.
Dissolved Oxygen (DO)
Oxygen is essential for the aerobic microorganisms within the biofilm. Insufficient DO levels can lead to poor biofilm development and reduced contaminant removal efficiency.
2.3 Troubleshooting Biofilm Issues
Operators may encounter situations where biofilm formation is disrupted or impaired, leading to reduced system performance. Common biofilm-related issues include:
1. Chlorination Exposure
If chlorine residuals from upstream processes enter the BAC filter, they can kill off the biofilm's microorganisms. Operators should ensure that chlorine is properly quenched (e.g., with sodium bisulfite) before water enters the BAC system.
2. Poor Oxygenation
Low dissolved oxygen levels can result in inadequate biofilm development, slowing down biodegradation rates. In such cases, operators can increase aeration or adjust flow rates to improve oxygen levels within the filter.
3. Biofilm Overgrowth
Excessive biofilm growth can lead to increased headloss and reduced flow capacity. Operators can manage this by adjusting the backwash frequency or performing a hydraulic bump to release excess biofilm material from the GAC.
Monitoring biofilm activity through tools like biofilm thickness sensors or regular measurement of BDOC (biodegradable dissolved organic carbon) can help operators ensure that the biofilm is functioning properly.
2.4 Case Study: Biofilm Acclimation in a Real-World BAC System
At the North City Pure Water Demonstration Facility, biofilm acclimation was critical to achieving high levels of TOC removal in a potable reuse application. During the initial 6-month acclimation period, operators monitored TOC levels and observed a gradual increase in TOC removal efficiency as the biofilm matured. By the end of the acclimation period, the BAC system was consistently achieving a 38% reduction in TOC, highlighting the importance of biofilm establishment for long-term system performance.
3. BAC System Components and Configuration
Biological Activated Carbon (BAC) Configuration
Biological Activated Carbon (BAC) systems are composed of a variety of components that work together to ensure effective water treatment. Each component plays a crucial role in maintaining system performance, monitoring operational parameters, and supporting routine maintenance. Understanding the configuration and function of these components is critical for operators managing BAC systems.
3.1 Overview of Filter Media and System Design

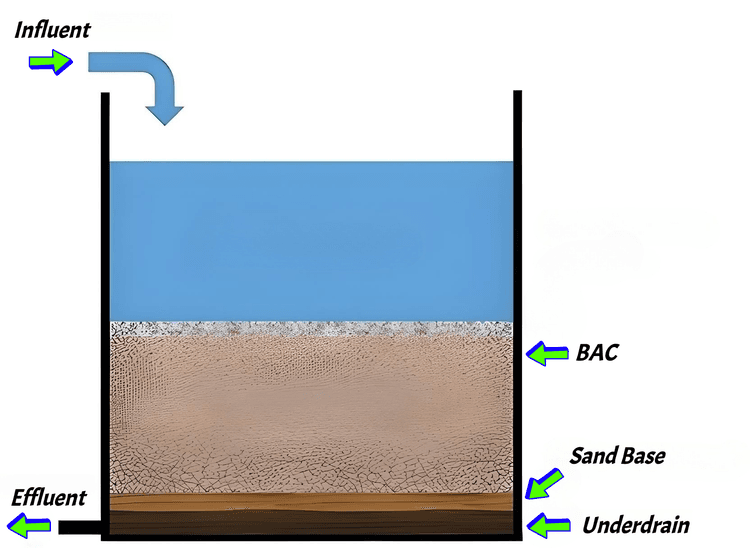

At the heart of any BAC system is the granular activated carbon (GAC) media. GAC provides a large surface area for both physical adsorption and biofilm formation, which are the two key mechanisms of contaminant removal in BAC systems. The design and configuration of the filter bed, as well as the distribution of flow, significantly impact the system's efficiency and overall performance.
- Filter Bed Depth: The depth of the GAC media plays a significant role in determining Empty Bed Contact Time (EBCT) and the overall treatment capacity of the system. Deeper filter beds provide longer contact times, which improve both adsorption and biodegradation.
- Filter Bed Volume: Operators should regularly measure the volume of the filter bed to ensure it meets the design specifications and maintains consistent performance.
3.2 Key System Components
BAC systems consist of several critical components that must function properly to ensure the system's efficiency. Each component has a specific role in maintaining proper flow, ensuring backwash efficiency, and preventing fouling.
Valves
Influent and effluent valves control the flow of water into and out of the filter. Operators must regularly inspect these valves to prevent leaks and ensure proper flow control. Additionally, backwash and drain valves play a crucial role in maintaining system cleanliness.
Flow Meters
Flow meters monitor the rate of water flowing through the BAC system. Maintaining an accurate flow rate is critical to ensuring that the system operates within design parameters and provides real-time data for operational adjustments.
Pumps
In pressure-driven systems, pumps maintain consistent pressure and flow through the filter. Centrifugal pumps are commonly used, requiring regular maintenance such as bearing lubrication and impeller inspection.
Differential Pressure Sensors
These sensors monitor the pressure drop between the influent and effluent sides of the filter. As the filter media becomes clogged, the pressure drop increases, indicating when backwashing is necessary.
Underdrain System
The underdrain system plays a critical role in evenly distributing water during filtration and ensuring uniform backwashing. It supports the media bed and prevents clogging in the lower layers of the filter.
3.3 Control Systems and Instrumentation
Modern BAC systems are equipped with advanced control systems to monitor key parameters, automate processes, and provide real-time data for operational decisions. The integration of SCADA systems allows operators to remotely monitor and control flow rates, pressure, TOC removal, and backwashing processes.
- SCADA Systems: Many large BAC systems use SCADA for centralized control and monitoring. Operators can set flow targets, monitor differential pressure, and initiate backwash sequences from a control room or mobile device. This automation reduces the need for manual intervention and increases operational efficiency.
- Automated Flow Control: Automated valves and flow meters adjust the flow rate in response to changing conditions, such as increasing headloss or changes in influent water quality. This ensures that the BAC system remains within its optimal operating range.
3.4 Gravity-Fed vs. Pressure-Driven Systems
BAC systems can be configured as either gravity-fed or pressure-driven. Each configuration has advantages depending on the facility's design and operational needs.
Gravity-Fed Systems
In gravity-fed systems, water flows through the filter by the force of gravity. These systems are typically simpler to operate and maintain because they do not require pumps to move water.
- • Simpler operation and maintenance
- • Lower energy requirements
- • Common in large-scale municipal facilities
Pressure-Driven Systems
Pressure-driven systems use pumps to move water through the filter media under high pressure. These systems are more compact and ideal for facilities with space limitations.
- • More compact design
- • Higher energy requirements
- • Requires careful pump monitoring
3.5 System Configurations and Performance Considerations
The configuration of the BAC system significantly impacts its performance, especially in terms of flow distribution and filtration efficiency. Two common system configurations include parallel and series filtration.
Parallel Filtration
In parallel filtration, multiple BAC filters are operated simultaneously, splitting the flow between them. This reduces the load on each individual filter and allows for more frequent backwashing without interrupting overall system operations. Parallel configurations are often used in high-capacity treatment plants.
Series Filtration
In series filtration, water passes through multiple BAC filters in sequence, allowing for greater contaminant removal. This configuration is beneficial when targeting high levels of organic or pathogen removal but may require more complex controls and instrumentation.
3.6 Maintenance Requirements
Each component of the BAC system requires regular maintenance to ensure proper function and avoid system failures. Operators must develop a preventive maintenance plan that includes regular inspection, cleaning, and replacement of worn components.
- Pumps and Valves: Pumps and valves should be inspected regularly for leaks, wear, and blockages. Operators should perform routine maintenance, including bearing lubrication, seal replacement, and flow testing.
- Underdrain Cleaning: The underdrain system must be cleaned periodically to remove any blockages caused by debris or media fines. Regular inspections help ensure that water flow remains uniform during both filtration and backwashing.
- Instrumentation Calibration: Flow meters, pressure sensors, and other monitoring equipment must be calibrated regularly to ensure accurate data. Inaccurate readings can lead to operational inefficiencies and missed maintenance opportunities.
4. BAC Filtration Process and Performance Indicators
The Biological Activated Carbon (BAC) filtration process is a combination of physical filtration and biodegradation that removes contaminants from water. To ensure the system operates efficiently, operators must monitor several performance indicators, such as headloss, Total Organic Carbon (TOC) removal, turbidity, and Ultraviolet Transmittance (UVT). Understanding these indicators and how to interpret them is critical for maintaining optimal system performance.
4.1 Filtration and Biodegradation Process
During normal operation, water flows through the granular activated carbon (GAC) media, where contaminants are removed by a combination of adsorption and biodegradation. As the water passes through the filter, the following processes occur:
Adsorption
Organic molecules adhere to the surface of the GAC, particularly during the early stages of the filter's operation when the carbon's adsorption capacity is high.
Biodegradation
Microorganisms in the biofilm break down organic contaminants into simpler compounds, such as carbon dioxide and water. This biological activity continues even after the GAC's adsorption sites are filled.
The success of the BAC filtration process depends on the balance between adsorption and biodegradation. Operators must ensure that the filter remains clean and functional by monitoring key performance indicators.
4.2 Key Performance Indicators
Headloss
Headloss is the pressure drop across the filter bed as water flows through the GAC media. As the media becomes clogged with particulates, biofilm, and other solids, the headloss increases. Monitoring headloss is essential for determining when backwashing is necessary.
Headloss is typically measured using differential pressure sensors installed at the influent and effluent ends of the filter. These sensors provide real-time data on the pressure drop, which can be logged and analyzed to determine trends over time.
A gradual increase in headloss is normal as the filter operates, but sudden spikes may indicate an issue, such as air binding or media fouling. Operators should establish a terminal headloss limit—the point at which the pressure drop becomes too high—and initiate a backwash when this limit is reached.
If headloss is increasing more rapidly than expected, it could indicate that the media is fouled or that biofilm overgrowth is causing excessive flow resistance. Operators can address this by adjusting the backwash frequency or using a hydraulic bump to clear excess material.
TOC Removal
Total Organic Carbon (TOC) removal is a critical performance indicator that measures the BAC system's ability to remove organic contaminants from the water.
TOC is measured using online TOC analyzers or by collecting samples for laboratory analysis. These analyzers continuously monitor TOC levels at both the influent and effluent, allowing operators to calculate the percentage of TOC removed by the system.
High TOC removal rates indicate that both adsorption and biodegradation are functioning well. A decline in TOC removal efficiency may signal an issue with biofilm activity, such as a disruption in microbial growth or insufficient oxygen levels.
If TOC removal is below the target level, operators should check for issues with biofilm development (e.g., insufficient dissolved oxygen levels or exposure to disinfectants like chlorine). Adjusting flow rates or adding oxygen may help improve biodegradation.
Turbidity
Turbidity is a measure of water clarity and is used to assess the filter's ability to remove suspended solids.
Turbidity is measured using turbidimeters, which provide a continuous reading of the water's clarity at the filter effluent. High turbidity levels in the effluent may indicate that the filter media is becoming clogged or that particulates are breaking through the filter.
Turbidity is closely monitored to ensure that water meets regulatory standards for clarity. If turbidity levels exceed acceptable limits, it may indicate that a backwash is needed or that the filter media is nearing the end of its useful life.
High turbidity can result from inadequate backwashing, media fouling, or excessive flow rates. Operators should adjust the backwash rate or flow rate as needed to maintain acceptable turbidity levels.
Ultraviolet Transmittance (UVT)
Ultraviolet Transmittance (UVT) measures the water's ability to transmit UV light, which is essential for UV disinfection processes downstream of the BAC system.
UVT is measured using UV sensors that monitor the transmission of UV light through the water. Higher UVT values indicate that the water is clear and free of particulates, while lower values suggest higher levels of organic matter or suspended solids.
UVT is particularly important in systems that rely on UV disinfection as part of a multi-barrier treatment approach. Low UVT can reduce the effectiveness of UV disinfection and may indicate that the BAC system is not removing enough organic matter.
If UVT drops below the target range, operators should investigate the BAC filter for fouling or incomplete removal of organic matter. Adjusting the EBCT or performing a backwash may help restore UVT levels to the desired range.
4.3 Routine Monitoring and Data Logging
Routine monitoring of these performance indicators is essential for maintaining optimal BAC system performance. Operators should establish a data logging system to track changes in headloss, TOC removal, turbidity, and UVT over time. Analyzing these trends can help predict when maintenance or system adjustments are needed before performance declines.
Headloss Trends
Gradually increasing headloss is normal, but operators should watch for sudden spikes that could indicate a problem, such as air binding or filter media fouling.
TOC Removal Trends
A steady decline in TOC removal may indicate a biofilm disruption or insufficient oxygen levels. Operators can adjust operational parameters to restore efficiency.
Turbidity and UVT Trends
Monitoring these trends helps ensure that water clarity remains within acceptable limits, especially if UV disinfection is used downstream.
4.4 Real-World Example: Performance Indicators in Action
At a municipal water treatment plant, operators noticed a gradual increase in headloss over several weeks, accompanied by a slight decline in TOC removal efficiency. After analyzing the data, they determined that the biofilm had become too thick, leading to increased resistance to flow. By performing a hydraulic bump and adjusting the backwash frequency, the operators were able to restore normal headloss levels and improve TOC removal. This example illustrates the importance of regularly monitoring performance indicators and taking corrective actions when needed.
5. Applications of BAC in Water Treatment and Reuse
Biological Activated Carbon (BAC) systems play a significant role in modern water treatment processes, particularly in both drinking water treatment and water reuse applications. BAC's dual filtration and biodegradation capabilities make it a versatile and effective solution for removing organic contaminants, controlling disinfection byproducts (DBPs), and improving overall water quality. In water reuse settings, BAC helps remove both organic pollutants and contaminants of emerging concern (CECs), ensuring compliance with stringent potable reuse regulations.
5.1 Drinking Water Treatment Applications
In drinking water treatment, BAC is primarily used to remove biodegradable dissolved organic carbon (BDOC) and assimilable organic carbon (AOC), two key contributors to biological regrowth in distribution systems. By reducing these organic compounds, BAC minimizes the potential for bacteria to grow in the water supply, helping to maintain water quality as it travels through pipelines and reaches consumers.
Control of Disinfection Byproducts (DBPs)

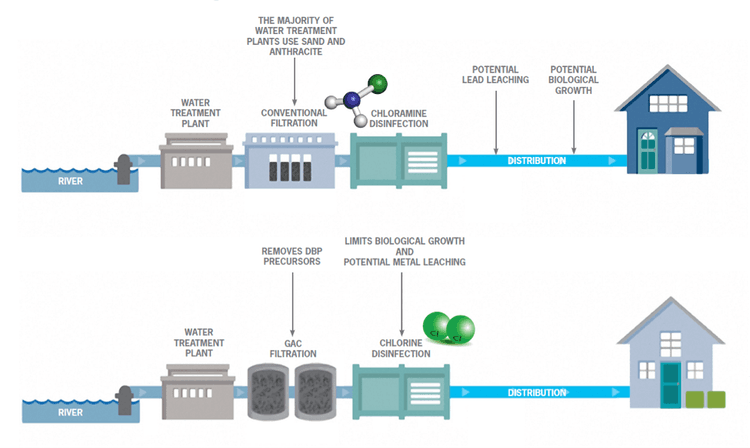

One of the major challenges in drinking water treatment is the formation of disinfection byproducts, such as trihalomethanes (THMs) and haloacetic acids (HAAs), which result from the reaction of disinfectants (chlorine, ozone) with organic matter in the water. BAC filters help reduce the formation of DBPs by removing precursor organic compounds before they react with disinfectants. This makes BAC an essential part of advanced drinking water systems seeking to meet stringent DBP regulations under the Stage 2 Disinfectants and Disinfection Byproducts Rule (Stage 2 DBPR).
Reduction of Taste and Odor Compounds
BAC is also effective at reducing taste and odor-causing compounds, such as geosmin and 2-methylisoborneol (MIB), which are often difficult to remove with conventional treatment processes. These compounds, produced by algae and bacteria in surface waters, can cause consumer complaints even when present in trace amounts. BAC's ability to adsorb and biologically degrade these compounds makes it a valuable tool for improving the aesthetic quality of drinking water.
Enhanced Biological Filtration
Many drinking water treatment plants are moving toward biologically active filtration (BAF) to reduce costs associated with frequent media replacement. BAC systems are a key part of this transition because they provide long-term organic contaminant removal without the need for constant regeneration of GAC media. By supporting biological growth, BAC extends the operational life of the filter and improves overall treatment performance, particularly in surface water treatment plants.
5.2 BAC in Reuse for Organic and Contaminant Removal
BAC systems are widely used in water reuse applications, where treated wastewater is purified for various non-potable and potable uses. In reuse applications, the primary goals of BAC are to remove organic contaminants, turbidity, and trace pollutants, ensuring that the water meets the high standards required for reuse.
Removal of Emerging Contaminants (CECs)
One of the key advantages of BAC in reuse applications is its ability to remove contaminants of emerging concern (CECs), such as pharmaceuticals, personal care products, endocrine-disrupting compounds (EDCs), and PFAS. These trace organic contaminants can persist through conventional treatment processes but are effectively reduced through the combined adsorption and biodegradation mechanisms of BAC. Continuous monitoring of these contaminants is becoming more critical, especially as regulatory limits evolve.
Synergy with Ozone Pre-Treatment
Ozone is often used upstream of BAC systems to break down larger organic compounds into smaller, more biodegradable fragments. This pre-ozonation process enhances the biological activity in the BAC filter by providing the microorganisms with more readily assimilable organic matter. Ozone also helps saturate the water with dissolved oxygen, which supports the microbial biofilm in the BAC media. This synergy between ozone and BAC enables the combined removal of organic contaminants to rival the performance of more advanced processes, such as advanced oxidation processes (AOP). However, operators must carefully control ozone dosing to avoid the formation of byproducts like bromate.
Trace Organic Contaminant and Disinfection Byproduct Removal
BAC systems can remove a wide range of contaminants, including N-nitrosodimethylamine (NDMA), a known disinfection byproduct with strict regulatory limits in California. NDMA and other small organic molecules, such as formaldehyde and acetone, are efficiently removed through the BAC process, making it an essential step in water reuse treatment trains.
5.3 Role of BAC in Potable Reuse and Membrane Treatment Enhancement
In potable reuse applications, such as surface water augmentation and indirect potable reuse (IPR), BAC systems are often used to enhance the performance of downstream treatment processes, such as membrane filtration and reverse osmosis (RO). By removing organics and suspended solids before they reach the membrane system, BAC helps reduce membrane fouling and extends the operational life of these critical components.
Membrane Fouling Reduction
One of the most significant operational challenges in membrane systems is fouling caused by organic matter and particulates in the feedwater. BAC systems remove these contaminants, reducing the fouling potential and improving the efficiency of membrane processes.
Pre-Treatment for Advanced Systems
BAC serves as an effective pre-treatment step in advanced water treatment (AWT) systems that utilize reverse osmosis, advanced oxidation, or UV disinfection. By removing dissolved organics and fine particulates, BAC improves the overall performance of the treatment train.
Regulatory Compliance
In California and other regions with potable reuse programs, BAC plays a crucial role in meeting regulatory requirements for the removal of organic contaminants, turbidity, and pathogens. Compliance with regulations such as the California Recycled Water Policy ensures that potable reuse systems meet the highest safety standards.
5.4 Example of BAC in Reuse: North City Pure Water Demonstration Facility
A real-world example of BAC in reuse can be seen at the North City Pure Water Demonstration Facility (NC PWDF) in San Diego, California. At this facility, BAC systems are used to remove TOC and other organic contaminants from wastewater that is being treated for potable reuse. The BAC filters at NC PWDF operate with an empty bed contact time (EBCT) of 15 minutes and achieve an average TOC removal rate of 38%. These systems are also used in combination with reverse osmosis and advanced oxidation processes to produce water that meets the stringent requirements for indirect potable reuse in California.
The successful integration of BAC into the NC PWDF treatment train demonstrates its effectiveness in enhancing membrane performance, improving TOC removal, and ensuring regulatory compliance for potable reuse projects.
6. BAC System Operation and Maintenance
Effective operation and regular maintenance of Biological Activated Carbon (BAC) systems are essential for ensuring long-term performance, maintaining water quality, and preventing costly downtime. Operators must be familiar with all aspects of the BAC system, from daily operations to troubleshooting common issues and implementing a long-term media management plan. This section covers key aspects of BAC operation, including the backwash process, performance monitoring, maintenance best practices, and long-term media management.
6.1 Detailed Backwash Process
The backwash process is critical for maintaining BAC system performance. Over time, particulate matter, biofilm, and other debris accumulate on the surface and within the GAC media, leading to increased headloss, reduced flow capacity, and diminished filtration efficiency. A well-executed backwash cycle cleans the filter media, restores flow, and prolongs the operational life of the system.
The backwash process typically involves four key stages:
Air Scour
Compressed air is introduced into the filter bed, agitating the GAC media and loosening particulates and biofilm that have accumulated on the surface. The air scour step is crucial for preventing media fouling and ensuring thorough cleaning of the filter media.
Low-Rate Water Backwash
After the air scour phase, a low-rate water backwash is initiated to flush out the loosened particulates. This step helps remove fine solids and biofilm from the filter bed without causing excessive expansion of the media.
High-Rate Water Backwash
The water flow rate is increased to fully expand the media bed and remove any remaining particulates. This phase is essential for restoring the filter's capacity and resetting its filtration efficiency.
Rinse
The final rinse phase uses a moderate flow rate to remove any residual particles and return the media bed to its normal configuration. This step is important for ensuring that the filter is ready for operation after the backwash process.
Optimal backwash rates are typically measured in gallons per minute per square foot (gpm/ft²) and should be tailored to the specific needs of the BAC system. Excessive backwash rates can result in media loss, while insufficient rates may not fully clean the media. Operators should monitor the filter's performance after each backwash cycle to ensure that headloss and flow rates return to acceptable levels.
6.2 Performance Monitoring and Instrumentation
To ensure BAC systems operate efficiently, operators must monitor several key performance indicators. These indicators provide real-time data that help operators detect potential issues early and make necessary adjustments before system performance degrades. Instrumentation plays a vital role in monitoring these indicators.
Headloss Monitoring
Headloss is the pressure difference between the influent and effluent sides of the BAC filter. As particulates and biofilm accumulate in the media bed, the pressure required to maintain flow increases.
Instruments: Differential pressure sensors provide real-time headloss data and must be regularly calibrated.
TOC Removal Monitoring
TOC removal is a key performance indicator that measures the system's ability to remove organic contaminants from the water. High TOC removal rates indicate proper biological activity.
Instruments: Online TOC analyzers continuously monitor TOC levels at influent and effluent points.
Flow Rate Monitoring
Maintaining consistent flow rates is essential for ensuring proper function of a BAC system. Changes in flow rates can affect EBCT and lead to uneven media fouling.
Instruments: Flow meters provide real-time data on water volume passing through the filter.
6.3 Long-Term Media Management
Granular activated carbon (GAC) media is the heart of a BAC system, and managing the media's long-term performance is crucial for ensuring the system's overall efficiency. GAC media gradually loses its adsorption capacity over time due to the accumulation of particulates, biofilm growth, and physical abrasion. Operators must regularly assess the condition of the media and determine when replacement or regeneration is necessary.
Key Considerations for Media Management:
- Media Lifespan: The lifespan of GAC media depends on several factors, including the quality of the influent water, the rate of organic contaminant loading, and the effectiveness of the backwash process. Regular monitoring of TOC removal and headloss can help operators assess when the media needs to be replaced.
- Media Replacement: Operators should plan for media replacement when the GAC's adsorption capacity is significantly reduced, and performance indicators show a decline in TOC removal. Media replacement schedules vary based on system design and operational parameters but are typically required every 2–5 years for most BAC systems.
- Media Regeneration: In some cases, GAC media can be thermally regenerated to restore its adsorption capacity. This process involves heating the media to remove accumulated contaminants, allowing the media to be reused. While more cost-effective than complete media replacement, thermal regeneration may result in some loss of carbon mass.
6.4 Troubleshooting Common Operational Issues
Despite careful maintenance, BAC systems can encounter operational issues that require troubleshooting. Understanding the causes of these issues and how to address them is critical for maintaining system performance.
Air Binding
Air binding occurs when air becomes trapped in the filter bed, reducing flow capacity and increasing headloss. This problem can occur due to improper backwashing or the release of gases from biofilm activity. To resolve air binding, operators can perform a hydraulic bump or adjust the backwash sequence to remove trapped air.
Media Fouling
Media fouling occurs when fine particulates, organic matter, or biofilm block the filter media, leading to increased headloss and reduced contaminant removal. Regular optimization of the backwash process can help prevent media fouling. Operators should also consider adjusting backwash intensity and frequency based on the level of fouling observed.
Biological Upsets
Disruptions in biofilm activity, such as exposure to disinfectants or sudden changes in water chemistry, can reduce the BAC system's ability to remove organic contaminants. To mitigate biological upsets, operators should ensure that disinfectants are neutralized before entering the BAC filter and monitor the system's dissolved oxygen levels.
6.5 Maintenance Best Practices and Preventive Maintenance Plan
A comprehensive preventive maintenance plan is essential for ensuring the long-term reliability of BAC systems. Regular maintenance helps prevent unexpected failures, optimizes system performance, and reduces the need for emergency repairs. Key components of a preventive maintenance plan include:
Valve and Pump Maintenance
Valves and pumps should be inspected regularly for leaks, wear, and blockages. Regular lubrication of pump bearings, seal replacement, and flow testing help prevent premature failures and ensure consistent operation.
Instrumentation Calibration
Flow meters, pressure sensors, TOC analyzers, and other monitoring instruments must be calibrated at regular intervals to ensure accurate readings. Accurate data allows operators to make informed decisions about system performance and maintenance needs.
Underdrain System Maintenance
The underdrain system must be inspected and cleaned periodically to prevent blockages that could disrupt flow distribution during filtration and backwashing. Operators should also check for signs of wear or damage that could compromise the system's performance.
Data Logging and Analysis
Keeping detailed records of system performance indicators, such as headloss, TOC removal, and flow rates, is critical for long-term system management. Operators should analyze these trends to identify potential issues before they impact system performance.
6.6 Real-World Case Study: Optimizing BAC Performance through Maintenance
At a large municipal water treatment plant, operators began to notice a gradual decline in the BAC system's TOC removal efficiency and a corresponding increase in headloss. After reviewing operational data, they determined that media fouling and air binding were contributing to the performance issues. By adjusting the backwash sequence to include a longer air scour phase and increasing the backwash frequency, the operators were able to restore the system's performance. This example highlights the importance of regular monitoring, data analysis, and proactive maintenance in optimizing BAC system performance.
7. Calculations and Math Problems
Operators must be able to perform key calculations for BAC system monitoring, performance evaluation, and regulatory compliance. Mastery of these math problems is essential for both certification exams and real-world troubleshooting. This section includes core formulas, step-by-step problem solving, and sample questions for hands-on practice.
7.1 Empty Bed Contact Time (EBCT) Calculation
EBCT measures how long water is in contact with the GAC media in a BAC filter. Longer EBCTs generally improve contaminant removal but require larger filters. EBCT is a key design and operational parameter.
Formula:
If flow rate is given in gallons per minute (gpm), convert using: 1 ft³ = 7.48 gallons
Example:
Filter media volume: 2,000 ft³
Flow: 1,500 gpm
Flow in ft³/min: 1,500 ÷ 7.48 = 201 ft³/min
EBCT = 2,000 / 201 = 9.95 min
7.2 TOC Removal Efficiency Calculation
Total Organic Carbon (TOC) removal efficiency measures how well the BAC system is reducing organic contaminants. This is a core performance metric for operators and regulators.
Formula:
Example:
Influent TOC: 7.2 mg/L
Effluent TOC: 4.5 mg/L
TOC Removal = [(7.2 – 4.5) / 7.2] × 100 = 37.5%
7.3 Headloss Rate Calculation
Headloss is the pressure drop across the filter bed. Tracking headloss rate helps determine when a backwash is needed and can help spot air binding or fouling.
Formula:
Example:
Headloss last backwash: 2.0 psi
Current headloss: 8.0 psi
Days since last backwash: 10
Headloss Rate = (8.0 – 2.0) / 10 = 0.6 psi/day
7.4 Practice Problems for BAC Operators
Problem 1:
Your BAC filter has a media volume of 1,250 ft³ and a flow rate of 940 gpm. What is the EBCT?
Problem 2:
Influent TOC is 8.5 mg/L, effluent TOC is 5.1 mg/L. What is the TOC removal efficiency?
Problem 3:
Last backwash headloss was 2.5 psi, now it's 7.0 psi after 6 days. What's the headloss rate?
8. Safety and Handling of BAC Systems
Operating and maintaining Biological Activated Carbon (BAC) systems involves handling various chemicals, equipment, and biological materials. Safety protocols are essential to protect both operators and the integrity of the water treatment process. This section highlights key safety concerns, personal protective equipment (PPE), and emergency procedures for BAC system operators.
8.1 Chemical Handling and Storage
Many BAC systems utilize chemicals such as acids, bases, and disinfectants for cleaning and maintenance. Proper chemical handling and storage are critical for preventing accidental exposure, spills, or hazardous reactions.
Chemical Safety Guidelines:
- • Always store chemicals in designated, clearly labeled storage areas with secondary containment.
- • Refer to Safety Data Sheets (SDS) for each chemical and follow manufacturer guidelines for storage and handling.
- • Never mix incompatible chemicals, such as acids and bases, which may cause violent reactions.
- • Transport chemicals using appropriate containers and equipment to prevent spills and leaks.
8.2 Biological Safety and Hygiene
Since BAC systems rely on active biofilms, there is a risk of exposure to microorganisms. Good hygiene and basic precautions help minimize risk:
Personal Hygiene
- • Wear gloves and avoid direct contact with GAC media and spent filter material
- • Wash hands thoroughly after handling filter media or performing maintenance
- • Use face masks or respirators in enclosed spaces
Equipment Safety
- • Disinfect tools and equipment after use
- • Use appropriate containers for biological materials
- • Follow proper disposal procedures for spent media
8.3 Personal Protective Equipment (PPE)
Operators should always wear the proper PPE when working with BAC systems. Required PPE typically includes:
Eye Protection
Safety glasses or goggles to protect eyes from chemical splashes or particulates.
Hand Protection
Chemical-resistant gloves for handling media and cleaning solutions.
Body Protection
Protective clothing, such as coveralls or lab coats, to prevent skin contact.
Respiratory Protection
Respirators or dust masks when handling dry GAC or working in confined spaces.
Foot Protection
Steel-toed boots to protect feet from falling equipment or media containers.
8.4 Confined Space Entry
Accessing BAC filter vessels for maintenance, inspection, or media replacement often requires confined space entry. Confined spaces present unique hazards, including low oxygen levels, hazardous gases, and the risk of entrapment.
Confined Space Safety Protocol:
- • Follow your facility's confined space entry program and obtain the required permits before entry.
- • Test the atmosphere for oxygen content and hazardous gases prior to entry.
- • Use a properly maintained tripod, harness, and retrieval system for entry and exit.
- • Ensure that an attendant is stationed outside the confined space at all times and maintains constant communication with the entrant.
8.5 Emergency Procedures
Preparation and training are essential for responding effectively to emergencies, such as chemical spills, accidental exposure, or equipment malfunctions.
Emergency Preparedness
- • Know the location of emergency showers, eyewash stations, fire extinguishers, and first aid kits.
- • Develop and regularly rehearse spill response and evacuation procedures.
- • Keep emergency contact numbers and facility-specific procedures posted in visible locations.
Incident Response
- • Report all accidents and near misses promptly.
- • Participate in follow-up investigations to improve safety protocols.
- • Document all safety incidents for future reference and training.
9. Advanced Topics in BAC Systems
BAC system research and technology continue to evolve, with new approaches, media types, and operational strategies designed to improve efficiency, resilience, and contaminant removal. This section highlights recent advancements, optimization techniques, and emerging applications for operators and advanced learners.
9.1 Alternative Media and Biofilter Design
While traditional BAC systems use granular activated carbon (GAC), ongoing research explores alternative media and filter configurations for greater contaminant removal or reduced maintenance:
Anthracite and Sand Blends
Some systems incorporate layers of anthracite or sand to improve suspended solids removal and reduce media fouling, particularly in high-turbidity source waters.
Engineered Biofilter Media
Advanced filter materials—such as expanded clay, porous ceramics, or synthetic supports—are being developed to optimize biofilm growth, hydraulic performance, and contaminant degradation.
High-Rate BAC Filters
Innovative BAC designs operate at higher filtration rates without sacrificing performance, allowing for smaller footprints and increased capacity. These systems use optimized media size, advanced backwash protocols, and enhanced flow distribution.
9.2 Optimizing EBCT, Loading Rates, and Nutrient Dosing
Advanced operators and engineers can optimize BAC performance through careful adjustment of Empty Bed Contact Time (EBCT), surface loading rates, and nutrient dosing:
- EBCT Tuning: Operators can increase EBCT to improve removal of slow-degrading organics, or decrease it to increase throughput when influent water quality is high.
- Hydraulic Loading Rate (HLR): Adjusting the rate at which water passes through the filter can influence contaminant removal, headloss development, and biofilm stability.
- Nutrient Dosing: In some applications, nutrients (such as nitrogen or phosphorus) are dosed to support microbial activity and prevent biofilm starvation. However, over-dosing can promote excess growth or result in unwanted byproducts.
9.3 BAC and Removal of Trace Contaminants
Recent research demonstrates the ability of BAC systems to remove a wide variety of trace organic contaminants, including:
Pharmaceuticals and Personal Care Products (PPCPs)
BAC filters can degrade or adsorb pharmaceuticals, endocrine-disrupting compounds, and synthetic organics, which are otherwise resistant to conventional treatment.
PFAS and Micropollutants
Some studies have shown limited removal of PFAS (per- and polyfluoroalkyl substances) and other "forever chemicals" in BAC systems, particularly when paired with advanced pre-oxidation or downstream AOP.
NDMA and Disinfection Byproducts
Advanced BAC configurations, especially when used after ozone or UV pre-treatment, show strong potential for removing nitrosamines and other DBPs to meet evolving regulatory limits.
9.4 Modeling and Real-Time Control of BAC Systems
Cutting-edge utilities are deploying real-time monitoring and mathematical models to optimize BAC operation:
Mathematical Modeling
Predictive models use flow, TOC, temperature, and microbial activity data to anticipate performance changes and guide operational adjustments.
Real-Time Control
Advanced sensors and SCADA integration allow for real-time adjustments to flow, backwash timing, and nutrient dosing based on live system feedback—maximizing performance and minimizing manual intervention.
Machine Learning
Some utilities are exploring AI and machine learning to forecast filter breakthrough, optimize maintenance, and automate process control based on historical data and performance patterns.
9.5 Future Research and Regulatory Developments
As water quality challenges evolve, research is ongoing to improve BAC system resilience, fouling resistance, and trace contaminant removal. Expect new regulatory requirements and guidance for contaminants such as PFAS, microplastics, and pathogens. Operators should stay engaged with industry news, attend conferences, and participate in training to keep skills sharp and systems compliant.
10. Glossary
Activated Carbon (AC)
A porous carbon material used to adsorb organic and inorganic compounds from water due to its high surface area. Commonly used in granular (GAC) or powdered (PAC) forms in water treatment.
Adsorption
The process by which molecules adhere to the surface of a solid (such as activated carbon), removing contaminants from water.
Anthracite
A hard, high-carbon coal used as a filter media layer to improve particle removal and reduce clogging in multi-media filters.
Backwash
A process in which flow is reversed through a filter to remove accumulated solids, biofilm, and debris, restoring filtration performance.
Biofilm
A community of microorganisms that grow on surfaces in water treatment systems, playing a key role in biodegradation within BAC filters.
Biodegradation
The breakdown of organic contaminants by microorganisms, converting them into simpler, less harmful compounds such as carbon dioxide and water.
BDOC (Biodegradable Dissolved Organic Carbon)
The portion of dissolved organic carbon in water that can be metabolized by microorganisms in BAC filters.
EBCT (Empty Bed Contact Time)
The theoretical time that water spends in contact with filter media in an empty filter bed, calculated as the ratio of bed volume to flow rate.
GAC (Granular Activated Carbon)
Activated carbon in granular form, used as the main filter media in BAC systems for both adsorption and as a substrate for biofilm growth.
Headloss
The pressure drop across a filter or media bed, typically measured in pounds per square inch (psi) or feet of water. An indicator of filter fouling and need for backwash.
Hydraulic Bump
A brief, increased flow through the filter to dislodge trapped air or particulate matter, often used to manage air binding or minor fouling events.
NDMA (N-nitrosodimethylamine)
A disinfection byproduct and probable human carcinogen, regulated in potable water reuse applications and effectively removed by BAC and advanced oxidation processes.
SCADA (Supervisory Control and Data Acquisition)
A computerized system used for real-time monitoring, data logging, and control of water treatment processes, including BAC operation.
TOC (Total Organic Carbon)
The total amount of carbon in organic compounds present in water, used as a key indicator of water quality and treatment effectiveness.
UVT (Ultraviolet Transmittance)
A measure of how much UV light passes through water, used to assess clarity and suitability for UV disinfection downstream of BAC systems.
Valve
A device used to regulate, start, or stop the flow of water or air through treatment system piping and equipment.
Backwash Rate
The flow rate used during the backwash process, typically expressed in gallons per minute per square foot (gpm/ft²), critical for cleaning filter media without losing media material.
Differential Pressure Sensor
An instrument that measures the difference in pressure between two points, used to monitor headloss across BAC filters.
Media Replacement
The process of removing and replacing exhausted or fouled filter media (such as GAC) to restore filter performance in BAC systems.
Complete Your BAC Certification Preparation
You've covered all essential aspects of Biological Activated Carbon systems. Ready to test your knowledge and continue your water treatment education?
About the Author
Jason Wiltsey is a water treatment expert, focusing on advanced oxidation processes and biological filtration systems. He shares insights for water treatment professionals at H2oCareerPro, helping operators master complex treatment technologies and achieve certification success.
Published: October 13, 2024 | H2oCareerPro Education Team
